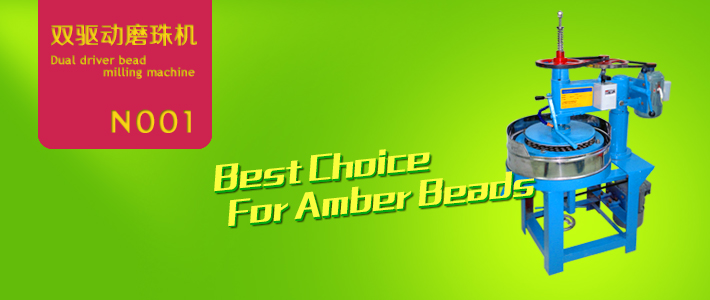

Zhuode Dual Driver Round Beads Milling machine N001 is the upgrade version of Bead Milling Machine N6207. It combine the advantages of Round Beads Milling Machine and high precision bead machine.

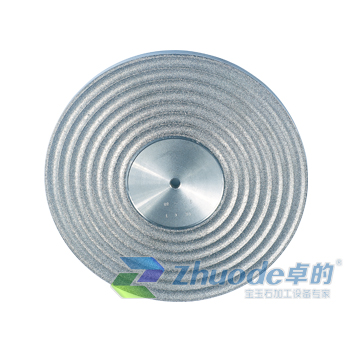

This machine run by the bottom diamond disk and upper cover. There is an iron plate between the disk and cover. We put the beads in the hole of iron plate. The rotation direction of diamond disk and upper cover is opposite.

The shaft of diamond disk is using planar bearing. Running more smoothly.

The upper cover can adjust the pressure. Keep the pressure is the same all the time. Reduce the damage to the stone that cause by the unstable pressure. Stable pressure can protect the beads.

Zhuode Dual Driver Round Beads Milling machine has a higher efficiency than Bead Milling Machine N6207. It only take 5-10mins to finish this bead milling process .It save time and higher finished product rate.

Zhuode Dual Driver Round Beads Milling machine is not only suitable for hard stone but also for soft material to produce round beads. Such as Amber, Turquoise, Coral that easy to broken.

Performance parameters of Zhuode Dual Driver Round Beads Milling machine N001

Voltage ：AC 220V/380v

Power ：0.75KW+0.37KW

Disk speed：600 r/min

Cover speed ：100r/min

Dimension ： L84×W51×H115cm

Performance parameters of Zhuode Dual Driver Round Beads Milling machine N001T

Voltage ：AC 220V/380v

Power ：0.75KW+0.37KW

Disk speed：0-600 r/min

Cover speed ：100r/min

Dimension ： L84×W51×H115cm
